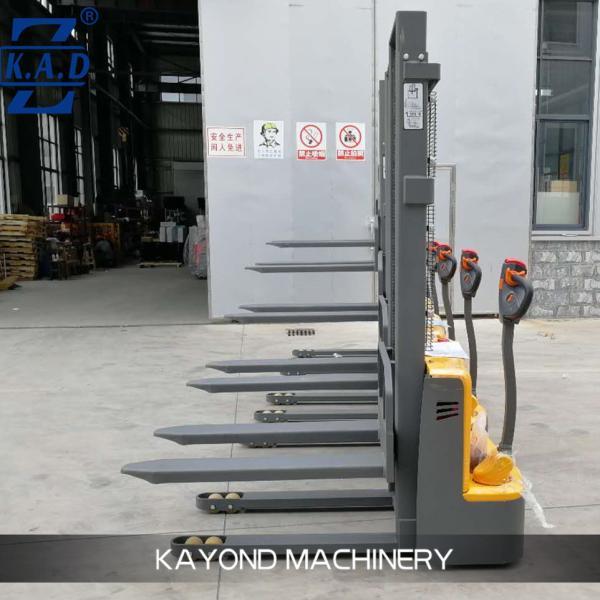

factory direct sell 1.5 Ton Capacity Walk Behind Electric Pallet Stacker with DC Motor 24V

Product Categories

Taizhou Custom Forklift Co.,Ltd

Contact Now

factory direct sell 1.5 Ton Capacity Walk Behind Electric Pallet Stacker with DC Motor 24V

Ask Lasest Price
Brand Name :	kad
Certification :	CE
Price :	CN¥12,209.24/units 1-4 units

Add to Cart

Product Details
Company Profile

factory direct sell 1.5 Ton Capacity Walk Behind Electric Pallet Stacker with DC Motor 24V

Product Description

Product Application

Electric walkie stacker 1.5ton 3m 3.5m europe us standard electric pallet stacker with CE

In small warehouses, production or retail environment,which is the entry level stacker you need to optimist your daily working routine. Due to its very small dimension, this stacker plays out its strengths in limited spaces.It can operate in narrow space, easy to operate and save much labor.

factory direct sell 1.5 Ton Capacity Walk Behind Electric Pallet Stacker with DC Motor 24V

Main Features

1) Using Curtis controller,which can be serviced by any forklift service company around the world.

2) With its integrated charger it gives you the flexibility you need in a modern, urban supply chain.

3) Maintenance-free batteries,no need to add water.

4)High strength fork

Specification

MODEL					CDDW10 CDDW15
Features	Drive system			Battery
	Features	Driving mode			Walkie
		Load Capacity	Q	KG	1000
		Load Center	C	MM	500
Weight	Weight(With battery)		KG	480/495/515/535
Wheels	Material			PU
Size	Lifting Height	H3	MM	1600/2000/2500/3000
		Lowest Mast	H1	MM	2080/1580/1830/2080
		Max.Height when operating	H4	MM	2080/2730/3230/3730
		Min.Height of Fork	H13	MM	≤90
		Length	L1	MM	1770
		Width	B1	MM	850
	Size	Fork Length	L	MM	1070
		Wheelbase	Y	MM	1250
		Fork Outside Width	B5	MM	680
		Fork Inside Width		MM	305
		Min.Turning Radius	WA	MM	1390
Performance	Driving Speed （Empty/Full Load）		MM/S	5.0/5.0
		Lifting Speed （Empty/Full Load）		MM/S	140/135
		Descending Speed （Empty/Full Load）		MM/S	150/155
		Max.Gradient （Empty/Full Load）		°	7/5
		Brake			Electromagnetic brake
	Driving Motor		KW	DC/0.75
		Lifting Motor		KW	DC/2.2
Battery	Capacity		V/Ah	24/80Ah

Detailed Images

Machine Parts

Control Handle The famous control handle and function button in China can sensitively control up/down, forward/backward.

Operation panel

Combined with the key, battery indicator, emergency switch. Functional panel and beautiful design make work joyful and easy.

Machine Parts

Strong cylinder and chain make fork run smoothly.
1-stage,2-stage,3-stage mast can be selected.

Main Features

1. Side positioned drive system

2. Strong caster

3. Easy to manage stability.
